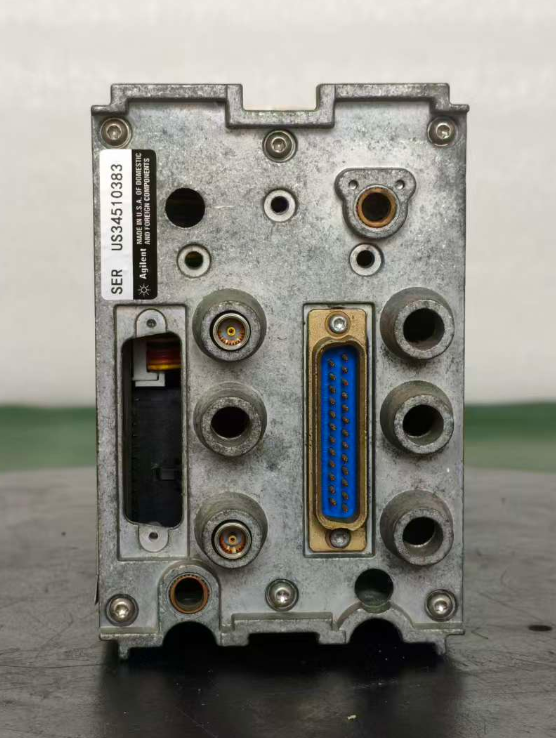

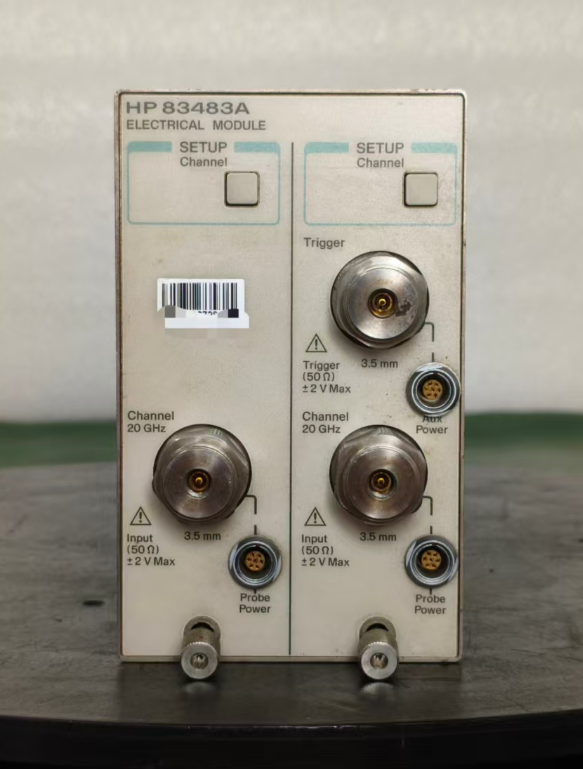

Dual-channel electrical module

Key FeaturesDual Channels with Selectable Bandwidth– Two independent electrical measurement channels.– Bandwidth can be manually switched between 12.4 GHz and 20 GHz:12.4 GHz mode – lower noise, ideal for small‑signal measurements.20 GHz mode – higher bandwidth for more faithful high‑speed waveform reproduction.Independent Trigger Channel– Provides a separate trigger input with a bandwidth of 2.5 GHz for stable triggering.High Sensitivity & Wide Dynamic Range– Vertical sensitivity: continuously adjustable from 1 mV/div to 100 mV/div.– Input dynamic range: ±2 V – suitable for high‑speed differential circuit testing.– Input impedance: 50 Ω (standard).Comprehensive Calibration Functions– Supports one‑touch calibration for channel skew, probe, and external gain.– Effectively eliminates measurement errors introduced by cables and fixtures.Connectivity & Compatibility– RF connector: 3.5 mm (male).– Mainframe compatibility: works with 83480A and all 86100A/B/C/D series DCA mainframes.– Built‑in probe power interface – supports use with compatible active probes.
